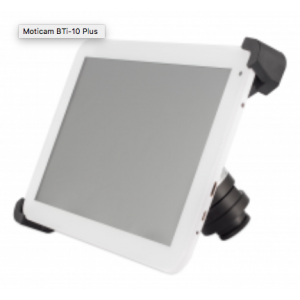

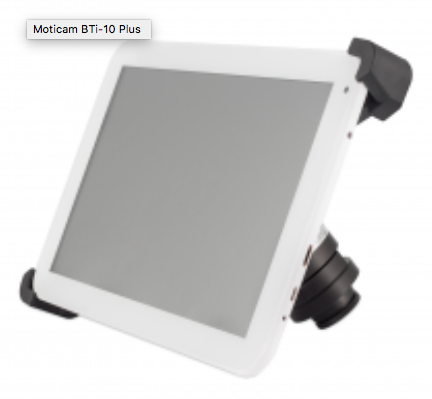

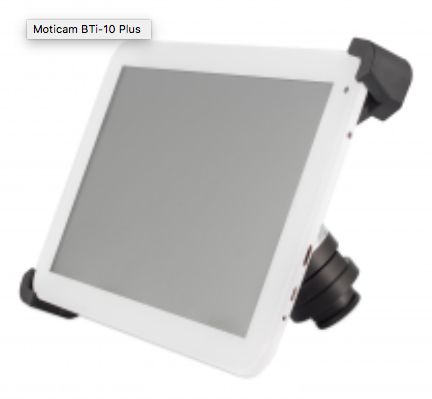

BTi-10 Plus

ยี่ห้อ : Motic

The Moticam BTi-10 is a tablet microscopy solution, consisting of a customized 10" Android tablet connected to a microscopy imaging camera. The android tablet is easily detachable and replaceable and is completely separate from the camera, therefore providing maximum flexibility. The Moticam BTI10 will help microscope users visualize, edit and share the microscope images, enabling computer-free digital microscopy.

Moticam BTi-10 Plus Specification Details

Sensor type	CMOS
Sensor size	1/3"
Processor	MediaTek P60 (MT6771)
Pixel size	2.0 x 2.0μm
Scan mode	Progressive
Max. frames per second (fps*)	30 fps (depending on Wi-Fi strength)
Operating temperature	From -10 to +50 Degrees Celsius non condensing
Lens mount	CS-Mount
Screen	10" IPS Tablet
Software	MotiConnect for Android/iOS/Windows/Mac OS
Functions	Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Package Includes	10” tablet, 12V Power Adapter, USB cable, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual
Tablet detail
System	Android 10.0
Pre-installed App	MotiConnect
Language	Multi-language
Display	10"(IPS) 16:10 Ratio
Display resolutions	1920 x 1080 pixels
Touch panel	Capacitive Multi-Touch Screen
Built-in interface	TYPE-C interface(OTG supported), TF interface, 3.5mm headphone jack
Speaker	Built-in speaker and microphone
Wi-Fi	802.11 a/b/g/n/ac
Bluetooth	4.2
Camera	Front 5MP, rear 8MP autofocus
Support audio format	MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
Picture format	JPG, JPEG, GIF, BMP, PNG
Battery	7500mAh polymer lithium battery cell
Memory	6GB
Color	White
