Captura 322

ยี่ห้อ : Hexagon

PRODUCT DESCRIPTION

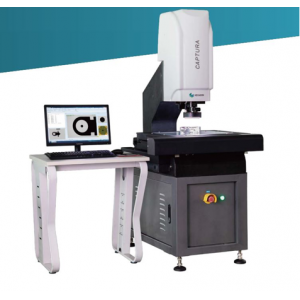

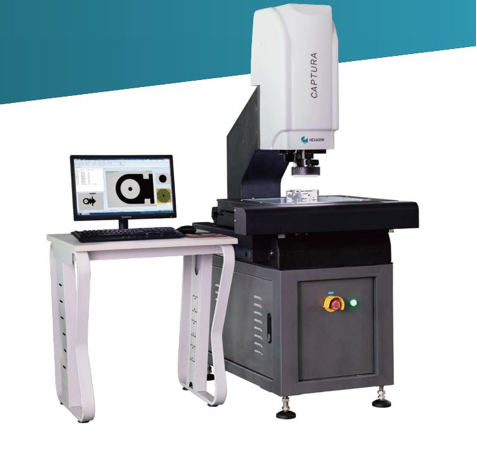

Captura is one of Hexagon Vision product line, with good performance and better price in the entry level market. Captura supports multi-sensor measurements using the Vision sensor, laser sensor, confocal sensor. The basic machine with vision sensor can be expanded with all the available sensors. The dynamic machine concept offers a high positioning accuracy and is designed for fast measuring point acquisition and high-performance vision capturing. Measurement software is Metus, which is a Hexagon owned software with more friendly interface and flexible operation mode.

DESIGN

• High precision granite construction to ensure long-term stability.
• Three axis full servo closed loop control system;
• Grinding grade screw drive, accurate positioning, high motion accuracy • High resolution color CCD; High resolution 1/12-inch CMOS camera (H 1280 x V 1024 pixels) with Gigabit Ethernet interface

• Customized CNC zoom with 6.5X Magnification and 10 steps • Magnification:25*215 (24’’ Screen)
• Navigator system
• Resolution of the scales : 0.4 um
• Illumination for Vision sensor
• Parallel LED backlight
• 6-rings & 8-segment LED ring light (white LEDs)
• Coaxial LED top light(optional)

Software METUS software for CNC noncontact measurement

Optional

• Joystick
• Keyence sensor
• Omron confocal sensor

Captura
Model		322	432	542
Range	X	300	400	500
	Y	200	300	400
	Z	200	200	200
Dimension(LWH)		860×639×1650	1000×767×1650	1140×818×1670
Exy Accuracy(μm)		2.5+L/200	2.5+L/200	3.0+L/200
Working distance(mm)		92	92	V
Plate load(kg)		20	20	20
Machine weight(kg)		350	400	450
