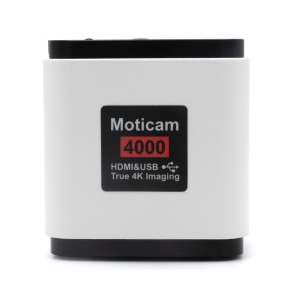

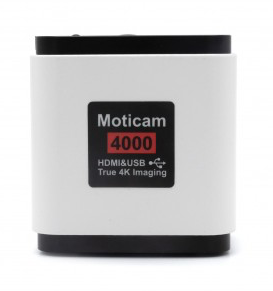

Moticam 4000

ยี่ห้อ : Motic

The Full HD affordable multi-tasking microscopy camera. The Moticam 4000 is dedicated to documentation of microscopic results with a clear focus on maximum colour fidelity and fast live image.

It does not require a computer for standard operation, as it comes with softwares that will allow you to use it by simply connecting it to a screen through its HDMI port, and with a mouse connected to the USB port of the camera.

Moticam4000 Specification Details

Sensor	IMX334
Sensor size	1/1.8"(8.86mm)
Image area	7.68 x 4.32mm
Capture resolution	8MP
Pixel size	2.0 x 2.0μm
Scan mode	Progressive
Data transfer	HDMI , USB 3.0
Exposure time	0.04~1000ms
Operating temperature	From -10 to +50 Degrees Celsius non condensing
Operating Humidity	30~80%RH
Lens Mount	C-Mount
G Sensitivity Dark Signal	505 mv with 1/30s \| 0.1 mv with 1/30s
Software	Motic Images Plus 3.1 for Windows/Mac OS
Package includes	12V Power Adapter, CS Ring, Motic 4-dot Calibration Slide, HDMI Cable, Manual, 12mm lens, Adapter φ30/ φ38, Macro Tube
SPECIFICATION FOR HDMI OUTPUT
Image Capture	JPEG/TIFF Format with 4K(3840*2160) Resolution in SD Card
Video Record	4K(30fps@3840*2160) H264/H265 encoded MP4 file in SD Card
Camera Control Panel	Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar	Including Zoom, Mirror, Comparison, Freeze, Measurement, Cross, Browser Function
Max. frames per second (fps*)	30fps@38402160 \| 30fps@19201080
SPECIFICATION FOR USB OUTPUT
Image Capture	JPEG/TIFF Format with 4K(3840*2160) Resolution in SD Card
White Balance	Auto White Balance
Color Technique	ltra-FineTM Color Engine
Recording System	Still Picture or Movie
Max. frames per second (fps*)	20fps@3840*2160
PC Requirements	CPU:Intel Croe2 2.8GHz or Higher Memory:8GB or More Display:19" or Larger Operating System:Windows 10/Mac OS X/Linux
