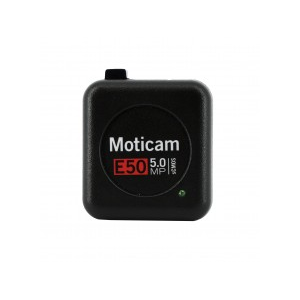

Moticam E50

ยี่ห้อ : Motic

Moticam E50 presents a 1/2.8” sensor with 5MP at a frame rate of up to 30 fps in full resolution. The Moticam Series, this camera covers all important aspects of a camera: resolution for detail information, speed for moving/living samples, an image grabbing to cover large sample areas.

MOTICAM E50 Specification Details

Sensor type	sCMOS
Sensor size	1/2.8"
Image area	6.52mm (Diagonal)
Capture resolution	5.0MP
Live display mode through USB	2592 x 1944pixels
Pixel size	2.0 x 2.0μm
Scan mode	Progressive
Shutter mode	Rolling Shutter
Data transfer	USB
Max. frames per second (fps*)	30fps at max resolution
Operating temperature	From -10 to +60 Degrees Celsius non condensing
Support device	TWAIN, SDK and DirectShow Driver
Supported OS	Microsoft Windows 7/8/10/MAC OSX/Android 4.0 or higher/ iOS7 or higher
Minimum computer requirements	2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount	C-Mount
Software	MotiConnect App (free download)
Functions	Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Package includes	CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
