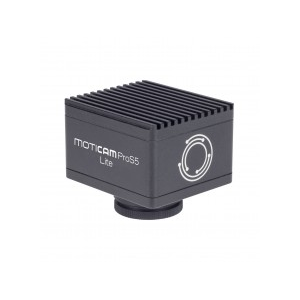

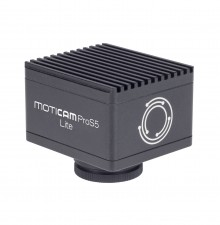

Moticam Pro S5 Lite presents a 2/3” sensor with 5MP at a frame rate of up to 40 fps in full resolution. The peak of Motics S Series, this camera covers all important aspects of a camera: resolution for detail information, speed for moving/living samples, an image grabbing to cover large sample areas.
MOTICAM Pro S5 Specification Details
Sensor type
sCMOS
Sensor size
2/3"
Image area
11.1mm (Diagonal)
Capture resolution
5MP
Live display mode through USB
2448 x 2048, 1224 x 1024pixels
Pixel size
3.45 x 3.45μm
Scan mode
Progressive
Shutter mode
Global Shutter
Data transfer
USB 3.1
Max. frames per second (fps*)
2448 x 2048 @ 37.5fps 1224 x 1024 @ 88.4fps
Exposure time
14 μsec to 2 sec
Operating temperature
From -10 to +60 Degrees Celsius non condensing
Sensitivity
1146mV(G) @ 1/30 sec
Support device
TWAIN, SDK and DirectShow Driver
Supported OS
Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
Minimum computer requirements
2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount
C-Mount
Software
Motic Images Plus 3.0 for Windows, OSX and Linux
Functions
Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply
5V (from USB Port)
Package includes
CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
