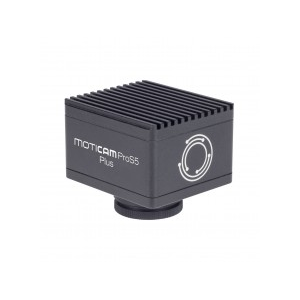

Moticam Pro S5 Plus

ยี่ห้อ : Motic

The new Motic sCMOS cameras developed by German engineering represents a new impetus to manufacturing quality, technical precision and lightweight design. With a member of this line the door for new application fields opens wide.The accelerated data readout (Rolling Shutter) also enables to work on fast moving phenomena.

Moticam Pro S5 Plus presents a 2/3” sensor with 5MP at a maximized frame rate of up to 70 fps in full resolution. The peak of Motics S Series, this camera covers all important aspects of a camera: resolution for detail information, speed for moving/living samples, an image grabbing to cover large sample areas.

Moticam Pro S5 Plus Specification Details

Sensor type	sCMOS
Sensor size	2/3"
Image area	11.1mm (Diagonal)
Capture resolution	5MP
Live display mode through USB	2448x2048, 1224x1024 pixels
Pixel size	3.45x3.45μm
Scan mode	Progressive
Shutter mode	Global Shutter
Data transfer	USB 3.1
Max. frames per second (fps*)	2448x2048 @ 68.3fps 1224x1024 @ 175.8fps
Exposure time	7 μsec to 2 sec
Operating temperature	From -10 to +60 Degrees Celsius non condensing
Sensitivity	1146mV(G) @ 1/30 sec
Support device	TWAIN, SDK and DirectShow Driver
Supported OS	Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
Minimum computer requirements	2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount	C-Mount
Software	Motic Images Plus 3.0 for Windows, OSX and Linux
Functions	Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply	5V (from USB Port)
Package includes	CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
