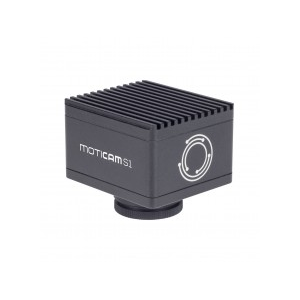

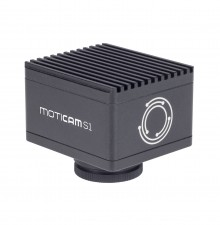

Moticam S1

ยี่ห้อ : Motic

The new Motic sCMOS cameras developed by German engineering represent a new impetus to manufacturing quality, technical precision and lightweight design. With a member of this line the door for new appli-cation fields opens wide. The accelerated data readout (Rolling Shutter) also enables to work on fast moving phenomena.. The Moticam S1 as entry model with the new back-illuminated sensor and speedy data transfer (excellent framerate up to 120 fps) makes any picture capturing easy. Convert your images in reproducible files: share or print like a professional.

MOTICAM S1 Specification Details

Sensor type	sCMOS
Sensor size	1/3"
Image area	6.09mm (Diagonal)
Capture resolution	1.2MP
Live display mode through USB	1280 x 960, 640 x 480pixels
Pixel size	3.75 x 3.75μm
Scan mode	Progressive
Shutter mode	Rolling Shutter
Data transfer	USB 3.1
Max. frames per second (fps*)	1280 x 960 @ 120fps 640 x 480 @240fps
Exposure time	15 μsec to 2 sec
Operating temperature	From -10 to +60 Degrees Celsius non condensing
Sensitivity	2350mV(G) @ 1/30 sec
Support device	TWAIN, SDK and DirectShow Driver
Supported OS	Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
Minimum computer requirements	2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount	C-Mount
Software	Motic Images Plus 3.0 for Windows, OSX and Linux
Power supply	100-240V (CE)
Functions	Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply	5V (from USB Port)
Package includes	CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
