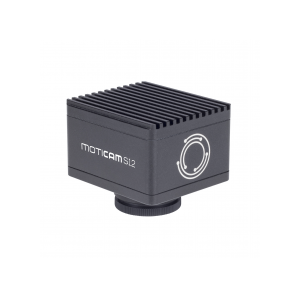

Moticam S12

ยี่ห้อ : Motic

If it is about maximum resolution for printing purposes, Moticam S12 is your choice. A 25fps maximum frame rate manages the largest data volume of Motics S Series. If resolution in display or for printing is in your mind, Moticam S12 is your solution.

MOTICAM S12 Specification Details

Sensor type	sCMOS
Sensor size	1/1.7"
Image area	9.33mm (Diagonal)
Capture resolution	12MP
Live display mode through USB	4000 x 3000, 2048 x 1080 pixels
Pixel size	1.85 x 1.85μm
Scan mode	Progressive
Shutter mode	Rolling Shutter
Data transfer	USB 3.1
Max. frames per second (fps*)	4000 x 3000 @ 60fps 2048 x 1080 @ 60fps
Exposure time	22 μsec to 2 sec
Operating temperature	From -10 to +60 Degrees Celsius non condensing
Sensitivity	280mV @1/30 sec
Support device	TWAIN, SDK and DirectShow Driver
Supported OS	Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
Minimum computer requirements	2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount	C-Mount
Software	Motic Images Plus 3.0 for Windows, OSX and Linux
Functions	Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply	5V (from USB Port)
Package includes	CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
