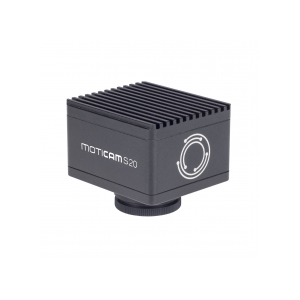

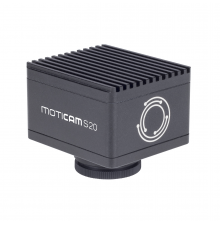

Moticam S20

ยี่ห้อ : Motic

The USB (Universal Serial Bus) connection is probably the most common peripheral connection to a computer. Now at USB3 speed, it makes fast dataflow and high resolution live imaging possible without having to rely on low frame rates or high exposure rates.

MOTICAM S20 Specification Details

Sensor type	sCMOS
Sensor size	1"
Image area	15.86mm
Capture resolution	20MP
Live display mode through USB	4000 x 3000, 2048 x 1080 pixels
Pixel size	2.4x2.4μm
Scan mode	Progressive
Shutter mode	Rolling Shutter
Data transfer	USB 3.1
Max. frames per second (fps*)	5472 x 3648 @ 18fps, 2736 x 1824 @ 50fps
Exposure time	15 μsec to 2 sec
Operating temperature	From -10 to +60 Degrees Celsius non condensing
Sensitivity	461mV(G) @ 1/30 sec
Focusable Lens	25mm
Power consumption	less 1.5W @ 5V (USB-supply)
Support device	TWAIN, SDK and DirectShow Driver
Supported OS	Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
Minimum computer requirements	2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount	C-Mount
Software	Motic Images Plus 3.0 for Windows, OSX and Linux
Power supply	100-240V (CE)
Software	Motic Images Plus 3.0 for Windows, OSX and Linux
Functions	Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply	5V (from USB Port)
Package includes	CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
