The 6MP resolution of Moticam S6 is clearly dedicated to large-sized displays and printing purposes. Presentations to a greater public through video projector, but also reports in hardcopy form are performed with easy of handling. Utilize an advanced technology for an affordable price..

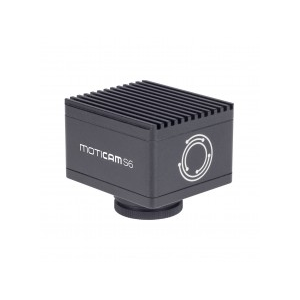

MOTICAM S6 Specification Details
Sensor type
sCMOS
Sensor size
1/1.8"
Image area
8.92mm (Diagonal)
Capture resolution
6MP
Live display mode through USB
3072 x 2048, 1536 x 1024 pixels
Pixel size
2.4 x 2.4μm
Scan mode
Progressive
Shutter mode
Rolling Shutter
Data transfer
USB 3.1
Max. frames per second (fps*)
3072 x 2048pixels @ 60fps 1536 x 1024@ 60fps
Exposure time
16 μsec to 2 sec
Operating temperature
From -10 to +60 Degrees Celsius non condensing
Sensitivity
425mV(G) @ 1/30 sec
Support device
TWAIN, SDK and DirectShow Driver
Supported OS
Microsoft Windows 7/8/10, MAC OSX10.9, Linux or higher
Minimum computer requirements
2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
Lens mount
C-Mount
Power supply
100-240V (CE)
Software
Motic Images Plus 3.0 for Windows, OSX and Linux
Functions
Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
Power supply
5V (from USB Port)
Package includes
CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for PC/OSX/Linux
