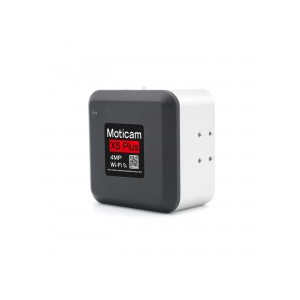

Moticam X5 Plus

ยี่ห้อ : Motic

Turn your microscope into a Wi-Fi station and share your images with up to 6 devices at the same time. Simply logon with your tablet or smartphone and get ready to capture, edit and store your microscope images with the free MotiConnect App.

The Moticam X5 Plus transfers live images up to 30 fps and captures images at 4.0MP. It also allows you to integrate it to your own network either via Wi-Fi or Ethernet cable, allowing more users to be standard Motic Images Plus Software for computers.

MoticamX5 Plus Specification Details

Sensor	1/3” CMOS Sensor
Image area	5.44 x 3.07mm
Capture resolution	4MP
Pixel size	2.0 x 2.0μm
Scan mode	Progressive
Shutter mode	Rolling Shutter
Data transfer	Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45)
Exposure time	0.03s~0.03ms
Operating temperature	From -10 to +50 Degrees Celsius non condensing
Operating Humidity	30~80%RH
Lens Mount	CS-Mount
Frames per second (fps*)	1120 mv with 1/30s \| 0.15 mv with 1/30s
USB	USB 5V Output
RJ45	LAN Port, Default IP: 192.168.2.151
WiFi	2.4G/5G (Suport 802.11ac), Default IP:192.168.1.151
Image Compression Engine	H264 or MJPEG
Stream Resolution	Major: 1920 x 1080, 1280 x 720 \| Minor: 640 x 360
Software	MotiConnect for Android/iOS; Motic Images Plus 3.1 for Windows/Mac OS
Package includes	12V Power Adapter, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual, 12mm lens, Adapter φ30/ φ38, Macro Tube, Macro Calibration card
