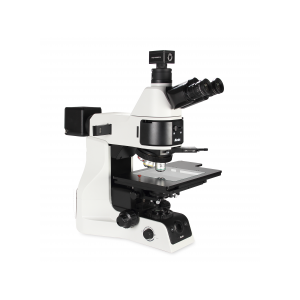

PA53MET

ยี่ห้อ : Motic

A combination of high-technology and creativity, the Motic PA53-MET series offers superior optical performance as well as an advanced ergonomic design, futuristic digital capabilities, and innovative modules. Motic PA53-MET: Your ultimate metallurgical Optical Solution.

PA53MET Specification Details

Optical system	Colour Corrected Infinity Optical System (CCIS®)
Illumination	Reflected
Binocular Observation Tube (Optional)	Erect type (F.N 25), 20° inclined
Trinocular Observation Tube	Erect type (F.N 25), 20° inclined, Trino Light path selection: 2-step (100:0 / 0:100)
Eyepiece(s)	10X (F.N 25), Diopter adjustable, Reticle optional
Revolving Nosepiece	5-position Nosepiece for Brightfield objective lens with DIC slot
Base unit - Focus	Stroke range: 29.5 mm / Coarse and Fine focusing knob. Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1 μm scale) Upper limit stopper, Torque adjustment ring
Base unit - Electronics	Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch
Length x width x height	246 x 572 x 514mm
Weight	19kg
Reflected Illumination
BF	Kohler illumination system / Brightfield, Normaski DIC, simple Polarized
Light source	12V 100W halogen
Objectives
Plan S-APO	5X/0.15 (W.D=20mm) 10X/0.3 (W.D=12mm) 20X/0.45 (W.D=3mm) 50X/0.8 (W.D=1mm) 100X/0.9 (W.D=0.5mm)(optional)
LPlan S-APO(optional)	20X/0.4 (W.D=12mm) 50X/0.55 (WD=8mm) 100X/0.8 (W.D=3.3mm)
Stage
Stage	metal plate, glass plate
Size	210 x 170mm
Stroke X&Y	104 x 102mm
Optional Stage	6x6” stage / 6x6” stage / 8” wafer stage / 12” wafer stage
