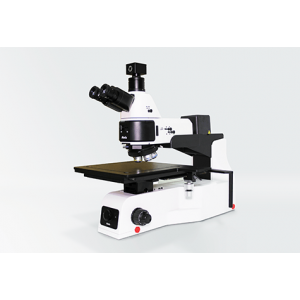

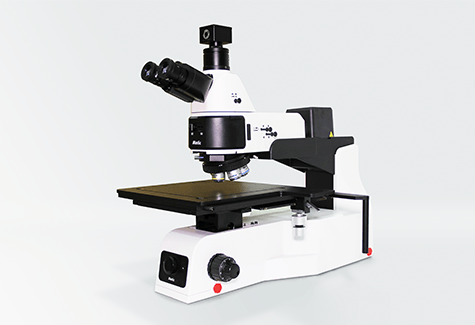

PA80MET

ยี่ห้อ : Motic

Motic Scientific’s PA80MET and PA120MET series microscopes feature a flexible, modular design that can be suited to your specific industrial inspection application. Our PA80MET and PA120MET series microscopes are widely used for FPD, LCD, and silicon wafer inspection.

PA80MET-T Specification Details

Optical system	Colour Corrected Infinity Optical System (CCIS®)
Illumination	Reflected / Transmitted
Binocular Observation Tube (Optional)	Erect type (F.N 25), 20° inclined
Trinocular Observation Tube	Erect type (F.N 25), 20° inclined, Trino Light path selection: 2-step (100:0 / 0:100)
Eyepiece(s)	10X (F.N 25), Diopter adjustable, Reticle optional
Revolving Nosepiece	5-position Nosepiece for Brightfield objective lens with DIC slot
Base unit - Focus	Stroke range: 29.5 mm / Coarse and Fine focusing knob. Coarse: 17.7 mm/revolution / Fine: 0.1 mm/revolution (1μm scale) Upper limit stopper, Torque adjustment ring
Base unit - Electronics	Integrated power supply for light adjustment / LED voltage indicator / IL switch and ECO switch
Reflected Illumination	Kohler illumination system / Brightfield, Reflected DIC, simple Polarization
Light source	12V/100W halogen
Objectives
Plan S-APO	Plan S-APO 5X/0.15 Plan S-APO 10X/0.3 Plan S-APO 20X/0.45 Plan S-APO 50X/0.8 Plan S-APO 100X/0.9 (Optional)
LPlan S-APO	LPlan S-APO 20X/0.4 LPlan S-APO 50X/0.55 LPlan S-APO 100X/0.8
Transmitted Illumination
Light source	10W LED
Condenser	LWCD, N.A 0.55
Stage
Size	325 (Max width 415) x 325mm
Moving stroke X&Y	200 x 200mm
Optional Stage	wafer stage
