ScopeCheck® FB DZ

ยี่ห้อ : Werth

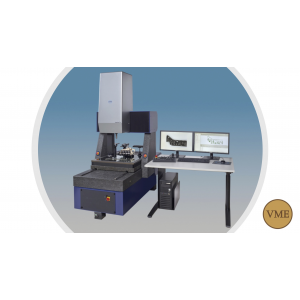

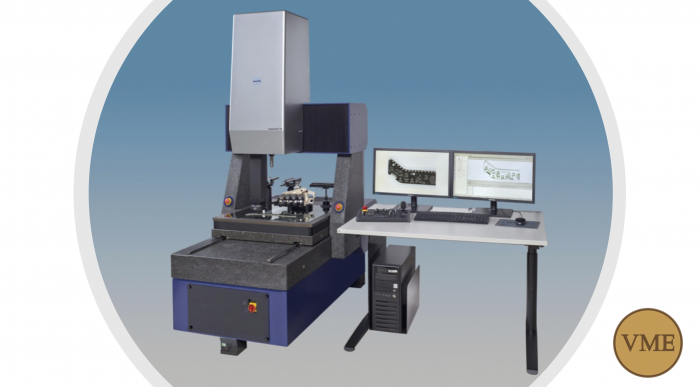

Werth ScopeCheck^®FB DZ

The multi-sensor coordinate measuring machine for economical production control
Design	3D-CNC fixed bridge multi-sensor CMM for use on the shop floor and in the gage lab.
Available Measuring Sensors	Werth image processing (IP) video sensor, Werth 3D-Patch, Werth Laser sensor, touch trigger and dynamic scanning probes, Werth Fiber probe, Werth Contour probe, etc.
Measuring Range	X = 400 (530) mm-1500 (1630) mm; Y=500-1000mm; Z=350mm
Maximum permissible length measurement error	down to 1.5 µm
Applications	Plastic connectors and housings, stamped/bent parts, rotary parts, printed circuit boards (PCBs) and watch plates, etc.

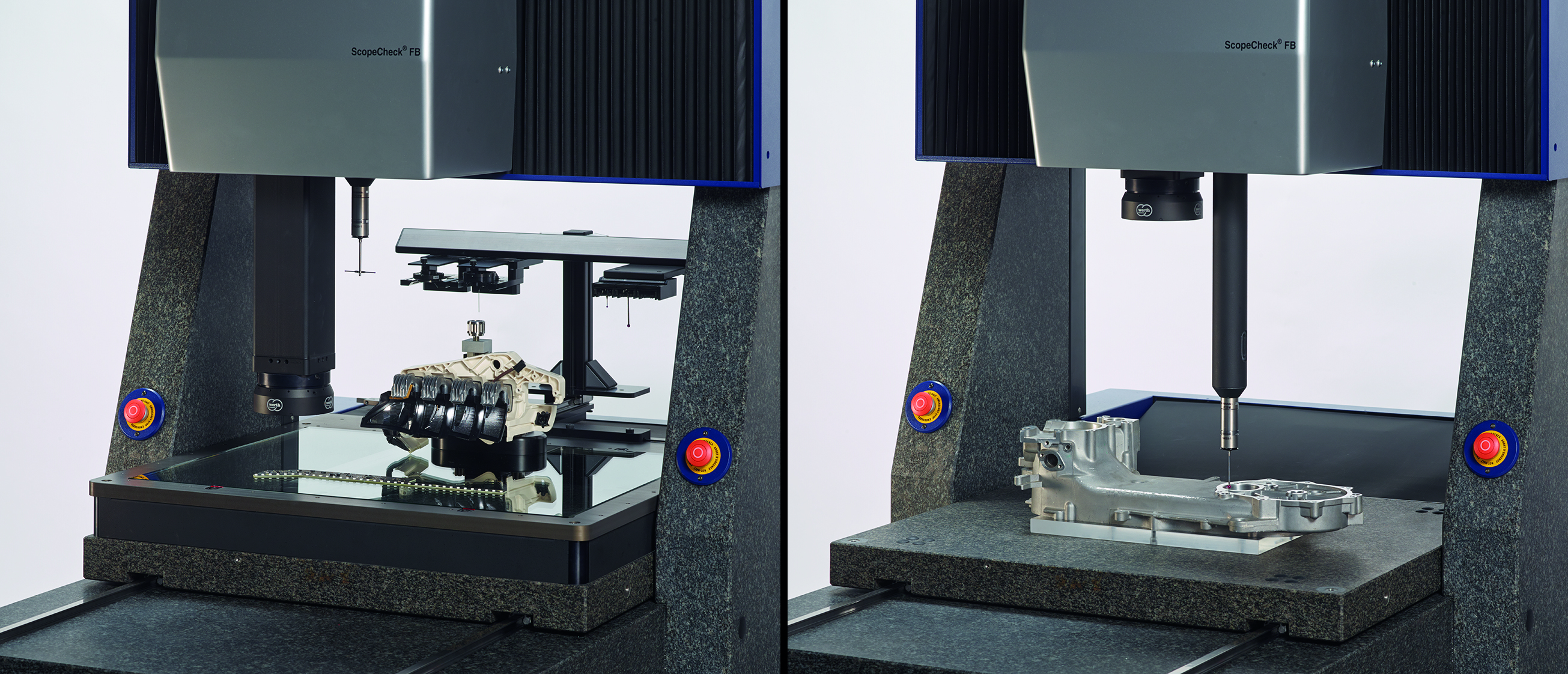

Photo: The glass table and transmitted light unit are easy to disassemble.
