Products » Werth Messtechnik GmbH » CMMs » ScopeCheck MB

ScopeCheck MB

ScopeCheck MB

ยี่ห้อ : Werth

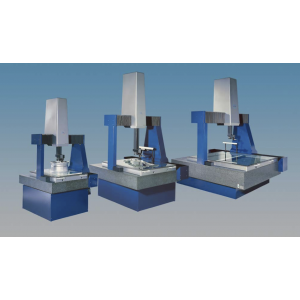

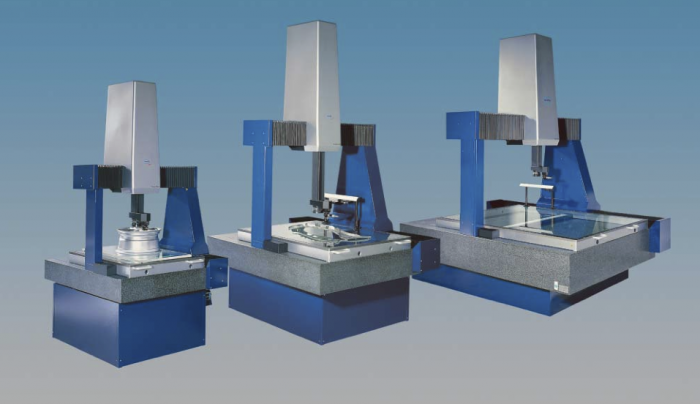

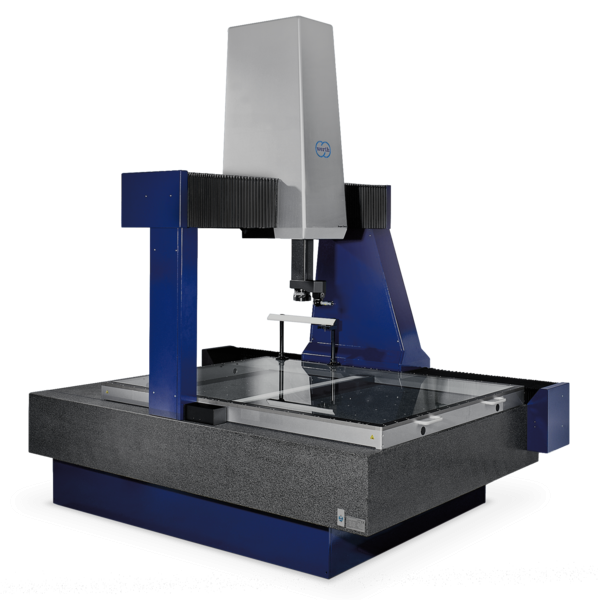

Werth ScopeCheck® MB

The multi-sensor coordinate measuring machine for flexible measurement and large measuring ranges

Design
3D-CNC multi-sensor coordinate measuring machine with a moving bridge design for large and  heavy workpieces.
Available Measuring Sensors Werth image processing (IP) video sensor, Werth 3D-Patch, Werth Laser sensor, touch trigger sensor and dynamic probes, Werth Fiber Probe, Werth Contour Probe,Werth IP 40 T (compact optical sensor head), etc.
Measuring Range X=500-2000mm; Y=600-3000mm; Z=450-1500mm
Maximum permissible length measurement error down to 1.8 µm
Application Large components from the automotive-. machine building and toolmaking industries, etc.
