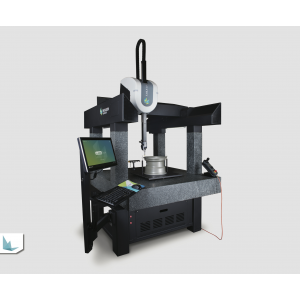

SF 7.10.7

Quality Insight at the Point of Production was Never Easier

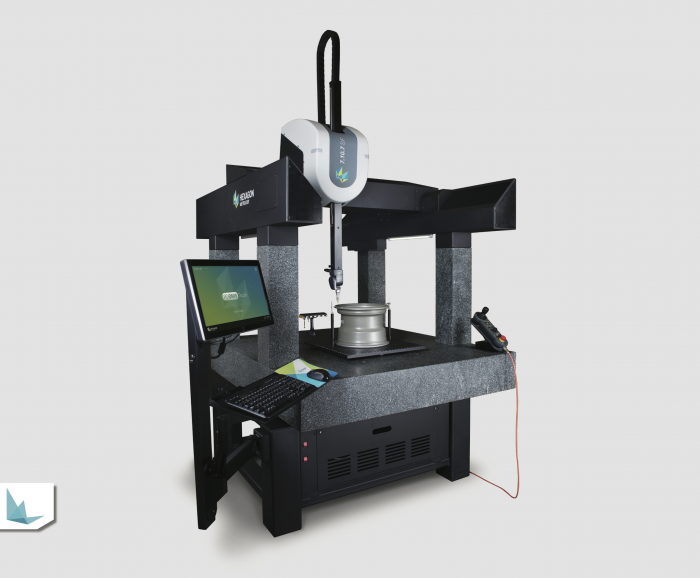

The 7.10.7 SF excels in demanding conditions, drawing its inspiration from over fifteen years of shop-floor machine production experience and thousands of units in the field worldwide. It is designed from the ground up to surpass the demanding requirements of shop-floor users, focusing on details that provide an unsurpassed user experience.

This rugged CMM is ideal for machine shops and manufacturing cells - featuring advanced thermal compensation, covered ways, built-in vibration resistance, shop-hardened design, and optional contact analog scanning.

Easy to use and economical to own and operate, with low up-front cost and simple maintenance, the 7.10.7 SF could be the easiest CMM you've ever owned.

Technical Information:

Design features

• Unique user oriented design features
  • Integrated LED workspace lighting
  • Integrated message lighting to alert users of system status from a distance.
  • Integrated fixture plate system
• No air supply needed.
• Durable, low maintenance, sealed recirculating ball bearings.
• Hardened steel machine tool linear guides enhance precision, reliability and durability.
• Bellows covers protect critical components from shop floor contaminants.

Environment

• Designed for the Shop Floor
• Accuracy performance stated for any temperature in the range 15-40° C (59-104°F)

Performance Data

• Hexagon Metrology tests and evaluates the 7.10.7 SF using the American standard ASME B89 and international standard, ISO 10360-2, ISO 10360-4 and ISO 10360-5.

Standard Package

• Hexagon Metrology 7.10.7 SF Shop Floor CMM
• DC241 Control System
• Workspace LED Illumination
• Temperature Compensation
• TESASTAR Touch Trigger Probe and Stylus Kit
• Calibration Sphere
• Computer System and Touch Screen LCD Monitor
• PC-DMIS PRO Measurement Software
• Installation and On-site Performance Verification
• PC-DMIS PRO Software Training (1 person for 5 days at Hexagon Metrology, Inc.)
• On-line User's and Software Manuals
• One (1) Year System Warranty with Applications Support

Measuring Size

• 710 mm x 1010 mm x 680 mm

Option:

Probing Options

• TESASTAR-i Manual Indexable Probe
• TESASTAR-i-m8 Manual Indexable Probe Head
• TESASTAR-m or TESASTAR-m-m8 Motorized Probe Head
• TESASTAR-mp Touch Probe
• MH20 Manual Probe
• MH20i Manual Probe
• LSP-X1c Fixed Head Analog Scanning Probe
• TESASTAR-m and LSP_-X1h Motorized Probe Head and Analog Scanning Probe
• PH10T or PH10M Automatic Wrist
• TP-20 Touch Probe
• Hand Control Unit for PH10 Wrist
• Styli Kits
• Stylus Changer Racks

Software Options

• Upgrade to PC-DMIS CAD or CAD++ with AutoPath bundle
• Display CAD Option for PCDMIS PRO
• PC-DMIS Sheet Metal Option (available with PRO and CAD)
• PC-DMIS Direct CAD Interfaces (DCIs)
• PC-DMIS Direct CAD Translators (DCTs)
• PC-DMIS CAD or CAD++ Offline
• PC-DMIS DataPage+ SPC
• PC-DMIS Single Touch Interface (STI+)

Machine Options

• Unique Message Lighting Feature
• Printers
• Computer Upgrades
