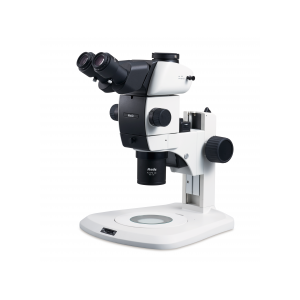

SM7 (CMO Optics)

ยี่ห้อ : Motic

Interchangeable objective lenses and accessories can be used to provide guaranteed satisfaction in any given inspection environment and for any task.

SM7 Specification Details

Optical system	Colour Corrected Infinity Optical System (CCIS®)
Observation tube	Binocular tube
Inclination	View inclination angle : 30°
Interpupillary distance	adjustable range : 55 to 75mm
Zoom drive	horizontal knob system
Zoom ratio values	7:1 (0.8-5.6x)
Zoom magnification indication	10-step, 0.8,1,1.25,1.6, 2, 2.5, 3.2, 4, 5, 5.6. Click stop for each zoom magnification: On-Off switching possible
Standard eyepiece(s)	UC WideField 10X/22 with diopter adjustment, +/- 5 diopter
Optional eyepiece(s)	UC WideField 15X/16 with diopter adjustment, +/- 5 diopter UC WideField 20X/12.5with diopter adjustment, +/- 5 diopter
Objective lens mounting	Screw mounting into thread
Standard objective	ACH1X (W/D=90mm)
Optional objective(s)	ACH0.5X (W/D=198.5mm) ACH2X (W/D=33.5mm) PLAPO 1X (W/D=81mm)
ST7
Standard stand	Standard large stand (Fixed arm)
Optional stand	Pole type stand
Head holder	Mounting diameter: 76mm
Focus mechanism	Coarse focusing system with tension adjustment
Focusing stroke	Knob rotation tension adjustment, 120mm
Optional accessory	4 Segmental LED Ring Light
Accessories included	Dust cover, Glass plate and Black/White plate (160mm)
