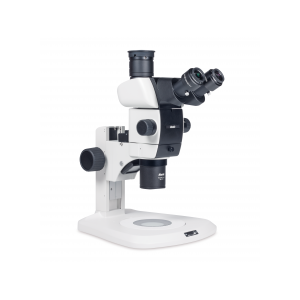

SM7 Trio

ยี่ห้อ : Motic

Interchangeable objective lenses and accessories can be used to provide guaranteed satisfaction in any given inspection environment and for any task.

SM7 Trino Specification Details

Optical system	Colour Corrected Infinity Optical System (CCIS®)
Observation tube	Trinocular tube
Inclination	View inclination angle : 30°
Trinocular light split	Light path selection: 2 steps (Binocular 100%, Video 80%-Binocular 20%)
Interpupillary distance	adjustable range : 55 to 75mm
Zoom drive	horizontal knob system
Zoom ratio values	7:1 (0.8-5.6x)
Zoom magnification indication	10-step, 0.8,1,1.25,1.6, 2, 2.5, 3.2, 4, 5, 5.6. Click stop for each zoom magnification: On-Off switching possible
Optional adapter	1X C-mount, 0.5X C-mount
Standard eyepiece(s)	UC WideField 10X/22 with diopter adjustment, +/- 5 diopter
Optional eyepiece(s)	UC WideField 15X/16 with diopter adjustment, +/- 5 diopter UC WideField 20X/12.5with diopter adjustment, +/- 5 diopter
Objective lens mounting	Screw mounting into thread
Standard objective	ACH1X (W/D=90mm)
Optional objective(s)	ACH0.5X (W/D=198.5mm) ACH2X (W/D=33.5mm) PLAPO 1X (W/D=81mm)
ILST7
Standard stand	LED reflected / transmitted illumination large stand (Fixed arm)
Optional stand	Pole type stand
Head holder	Mounting diameter: 76mm
Focus mechanism	Coarse focusing system with tension adjustment
Focusing stroke	Knob rotation tension adjustment, 120mm
Light source	Transmitted illumination: LED Reflected illumination: LED AC 100-240V, 50/60Hz, 10W
Optional accessory	4 Segmental LED Ring Light
Accessories included	Dust cover, Glass plate and Black/White plate (160mm)
