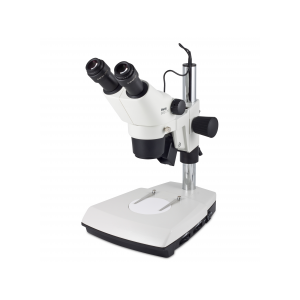

SMZ-171 BLED

ยี่ห้อ : Motic

Features of SMZ-171BLED & SMZ-171TLED :

Pole type stand with transmitted/incident illumination
Ø 32mm column with 232mm height
LED 3W incident illumination with intensity control
LED 3W transmitted illumination with reflector and intensity control, fiber optics input optional
Internal transformer
Dust cover, black/white and frosted stage plates included
303 x 239 x 405mm

SMZ-171 Standard Specification Comparison

	▾ SMZ-171 Binocular	▾ SMZ-171 Trinocular
Optical system	Greenough
Trinocular light split	/	Fixed 50:50
Observation angle	45°/ 60°	45°
Objective system	Zoom; ratio 1:6.7
Objectives magnification	0.75X~5X
Auxiliary ESD objectives	0.3X (WD = 301mm), 0.5X (WD = 191.8mm), 0.63X (WD = 142.7mm) 0.75X (WD = 128.6mm), 1.5X (WD = 56.3mm ), 2.0X (WD = 38.6mm)
Interpupillary distance	52-75mm
Height of eye point	405mm
Eyepiece(s)	N-WF, high eye-point 10X(Ø23), Diopter adjustable interchangeable with biological eyepieces
	N-WF 12.5X(Ø18), 15X(Ø16), 20X(Ø13) optional
Working distance (standard)	110mm
Working distance (max.)	301mm
Stand option	Pole type stand without illumination
	Arm base stand and plain stand available 3W LED incident and transmitted light with reflector design Improved design for various boom stands for industrial use
Focusing stroke	49mm
Focus mechanism	Coarse focusing system with tension adjustment
Head holder	for Ø 32mm column and Ø 76mm head
C-Mount adapter	/	Trinocular head only
		0.5X, 0.65X, 1X adapters available
Photo adapter	/	SY10 photo adapter 2.5X, 4X photo eyepiece available
Base	303 x 239mm
