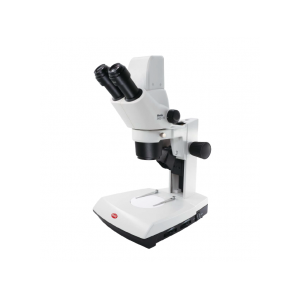

SMZ-171 D

ยี่ห้อ : Motic

This new software package is a complete rework of our popular Motic Images Plus 2.0. Having listened to feedback from end-users, we have packed as many useful features and tools as possible into this software suite while still keeping it organized, intu-itive and easy to use. Best of all is its price tag. It is given free of charge to any Moticam purchase. That makes the Motic Images Plus 3.0 probably the most versatile and comprehensive free digital microscopy program in the market today.

SMZ171-D Binocular Specification Details

Optical system	Greenough
Observation tube	Binocular head, 45° inclined with Built-in digital camera
Inclination	45° inclined
Interpupillary distance	55-75mm
Eyepiece(s)	N-WF 10X/23mm
Objective classification	Zoom system, ratio 1:6.7
Objectives magnification	0.75X - 5X
Stage	360º circular rotating stage, 1º increments, 0.1º vernier scale and lockable
Working distance	110mm
Stand	303x239mm Ø 32mm, 232mm hight
Head holder	for Ø 32mm column and Ø 76mm head with incident illumination
Focus mechanism	Coarse focusing system with tension adjustment
Focusing stroke	49mm
Incident illumination	3W LED with intensity control
Transmitted illumination	3W LED with intensity control
Accessories included	Black, white and frosted stage plates and dust cover, Calibration slide, USB
