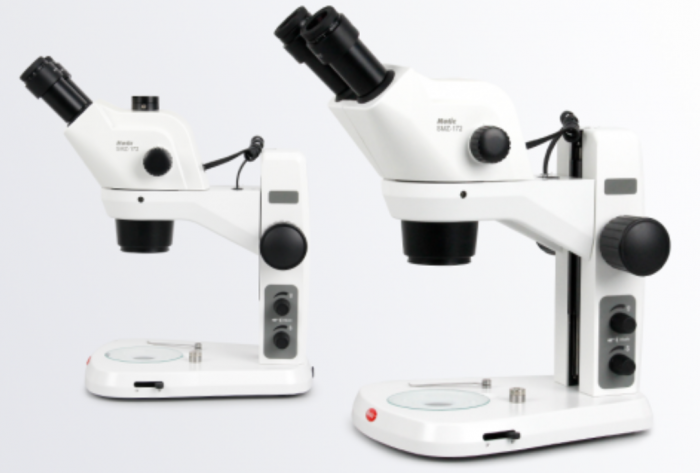

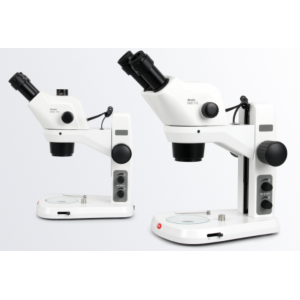

SMZ-172

SMZ-172T Standard Specification Comparison

▾ SMZ-172B

▾ SMZ-172T

▾ SMZ-172I

Optical system

Greenough

Observation Head

Binocular head

              Trinocular head

Binocular head

Observation angle

45°

Zoom range (standard)

0.75X–5.0X

Zoom ratio

6.7:1

Eyepieces (standard)

Adjustable WF10X

Maximum field of view

23 mm

Diopter adjustment

±5°

Working distance (standard)

110 mm

Depth of field (standard setup)

                                                                         2.42–0.13

Phototube (trinocular port)

/

Available of 0.5X / 0.65X / 1.0X C-mount adapters

     /

Bulit-in camera

/

                          /

      Moticam X5

Auxiliary objectives

0.3X [WD = 301 mm]
0.5X [WD = 191.8 mm]
0.63X [WD = 142.7 mm]
0.75X [WD = 128.6 mm]
1.5X [WD = 56.3 mm]
2.0X [WD = 38.6 mm]

Maximum system magnification

200X

Maximum system working distance

210 mm

Maximum system field of view

102.2 mm

Anti-static (ESD)

yes
