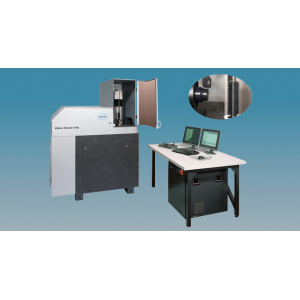

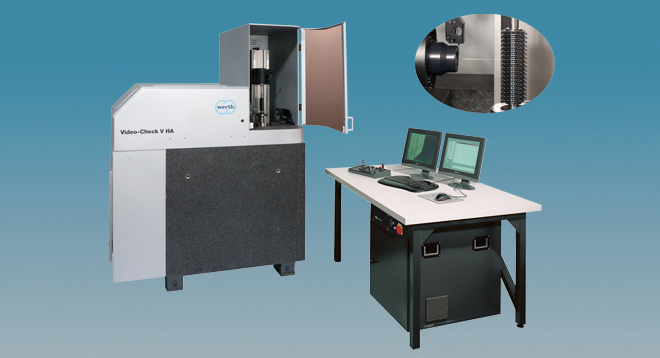

Highly accurate tool measurement - most accurate multi-sensor coordinate measuring machine for the measurement of tooling
Design
Multi-sensor coordinate measuring machine with high accuracy vertical design. Highest measuring accuracy due to the use of precision air bearings and rigid granite design.
Available Measuring Sensors
Werth image processing (IP) video sensor, Werth 3D-Patch, Werth laser sensor, touch trigger and dynamic scanning probes, Werth Fiber Probe, Werth Contour probe, etc.
Part Dimensions
L=300/500mm; D=200/200mm
Maximum permissible length measurement error
down to 0.25 µm
Applications
twist drills, step drills, taps, form cutters, hobs, reamers, endmills, etc.
