Werth 3D Patch

● Measurement of 3D freeform geometries with focus variation (patent pending)

● Differentiation of regular geometry elements such as cylinder and plane out of the measured freeform geo- metries

● Function focus variation

● Field of view depends on the mag- nification used and the required probing error*

● Density of points is selectable

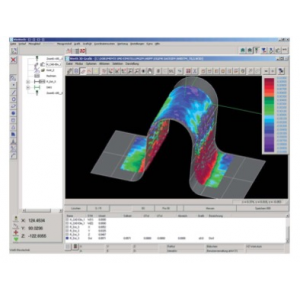

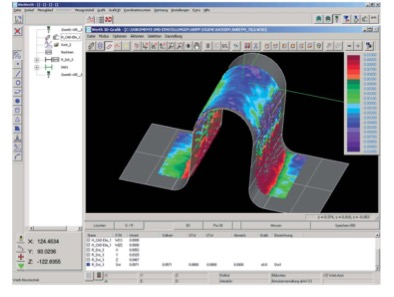

● Measuring result (3D point cloud) is available for further processing with Werth contour algorithms

● Flexible illumination of the work pieces

● Perfect complement for all Werth multisensor coordinate measuring machines: ScopeCheck®, VideoCheck® and Inspector®

 ● Probing errors can be found in the product information for Werth Tele- cenric Lenses TO or Werth Zoom.
